Bolzoni Auramo

AMCS-77-1060PE0441

Name: AMCS-77-1060PE0441
Brand: Bolzoni Auramo
SKU: U-40042101
Price: 29700.0 USD
Availability: InStock

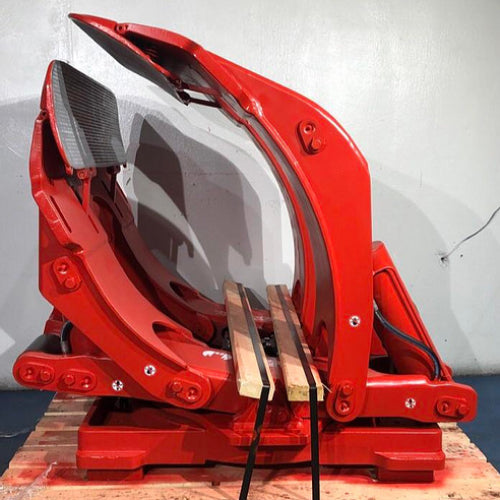

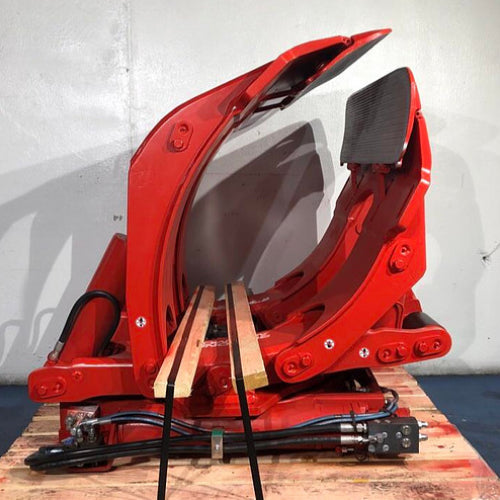

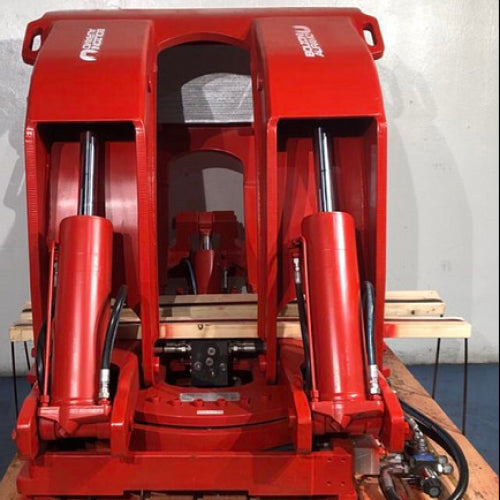

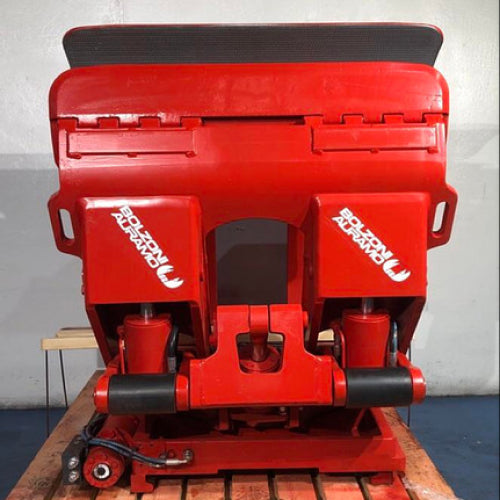

AMCS-77-1060PE0441 BA 360 PRC-SWINGFRAME

Product variants

Quantity

Wishlist Add to Wishlist Remove from Wishlist

Description

AMCS-77-1060PE0441 BA 360 PRC-SWINGFRAME

Status

Sellable--In Stock

Condition

Refurbished Demo product -light usage

Warranty

6 Month

Specs

Capacity: 7,700 lbs / 30"

360 Degree Roatation

Arms: Positioned Short Arm at 45 deg rotation angle Swing frame

Roll Range: 10"-60"

Weight 2,980 lbs

LL: 9.4 HCG: 13.4" VCG: 14.0"

Mounting Class: IV

Pads: Cast 1+1 (39.4"x11")

Hydraulic Functions: (3) Required 5 degree forward tilt required from lift mast for picking bilge rolls Max clamping pressure 2180 psi (150 bar).

Serial Number

40042101

Manufacturing Date

2017

Capacity: 7,700 lbs. / 30"

360 Degree Rotaeon‚

Arms: Posieoned Short Arm at 45 deg rotaeon angle‚Swing frame‚Roll Range: 10"-60"

Weight 2,980 lbs.,LL: 9.4",HCG: 13.4"‚VCG: 14.0"‚

Mouneng Class: IV‚Pads: Cast 1+1 (39.4"x11")‚

Hydraulic Funceons: (3) Required‚5 degree forward elt required from lio mast for picking bilge rolls‚

Max clamping Pressure 2180 psi (150 bar)

Manufacturing Date: 2017

Warranty 6 months

AMCS-77-1060PE0441
